MY little Radio Control page
KAN1050 measurements

Schulze ISL6-330d used, All discharges was made at 1A unless other stated.
Same battery pack was used, 8 cells KAN1050 date code 04/07/03

See the Battery pictures

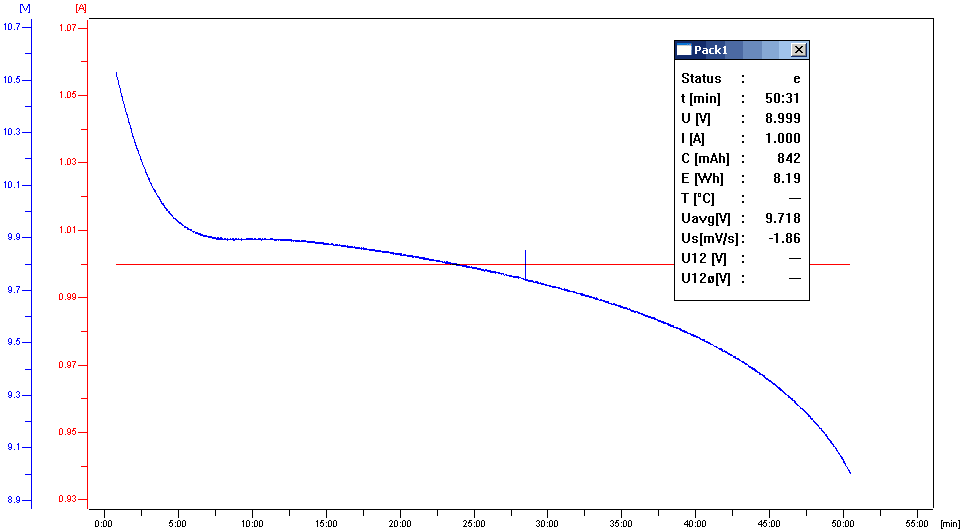

000 - Charged 3 days ago, Result 842mAh

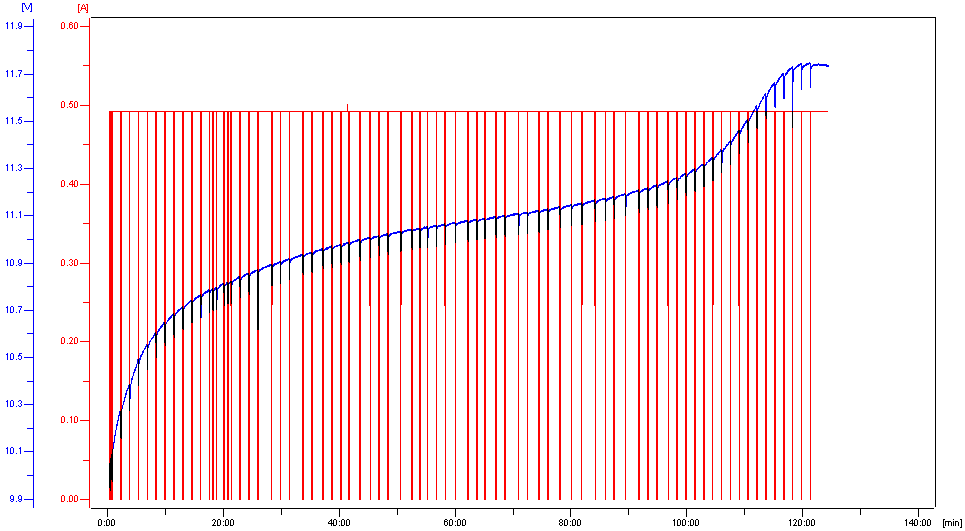

001 - Here charging at 500mA

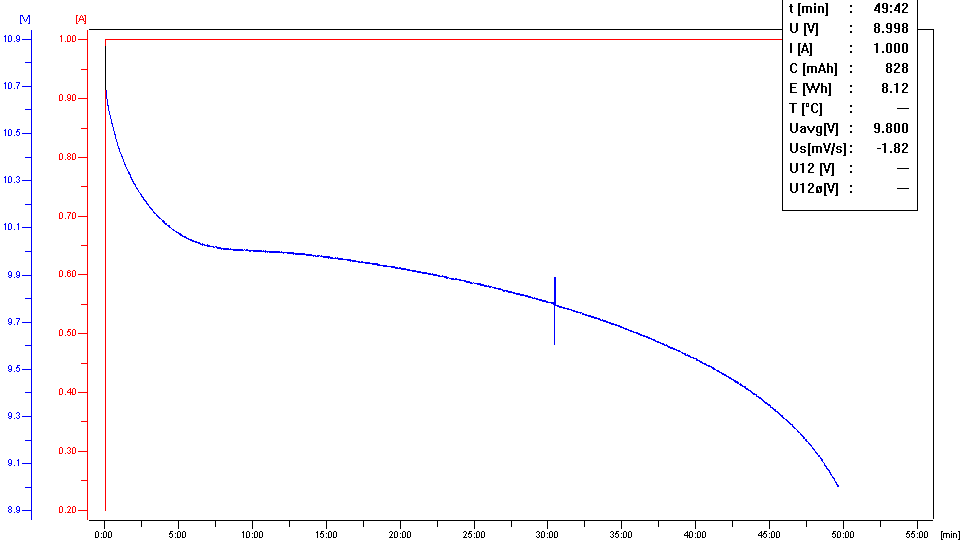

002 - Result 828mAh

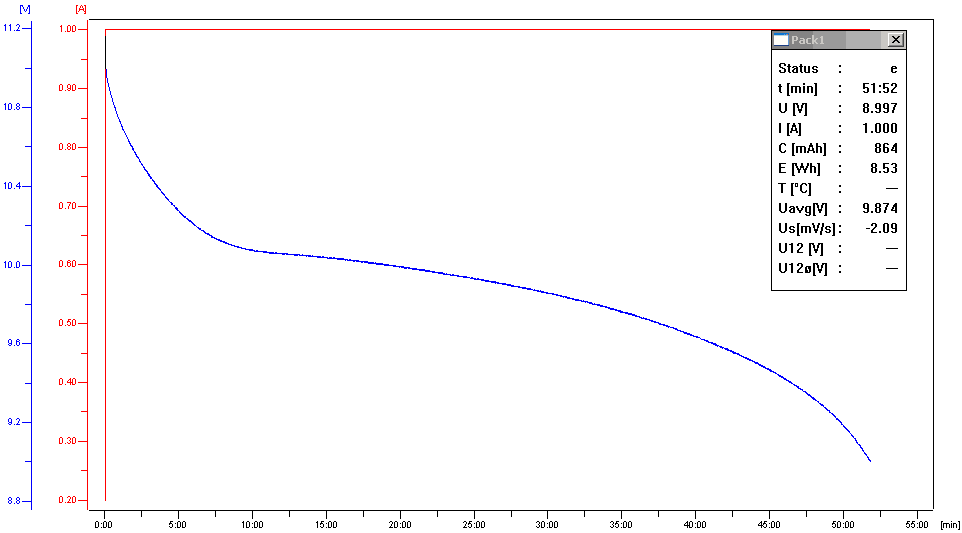

004 - Result 864mAh

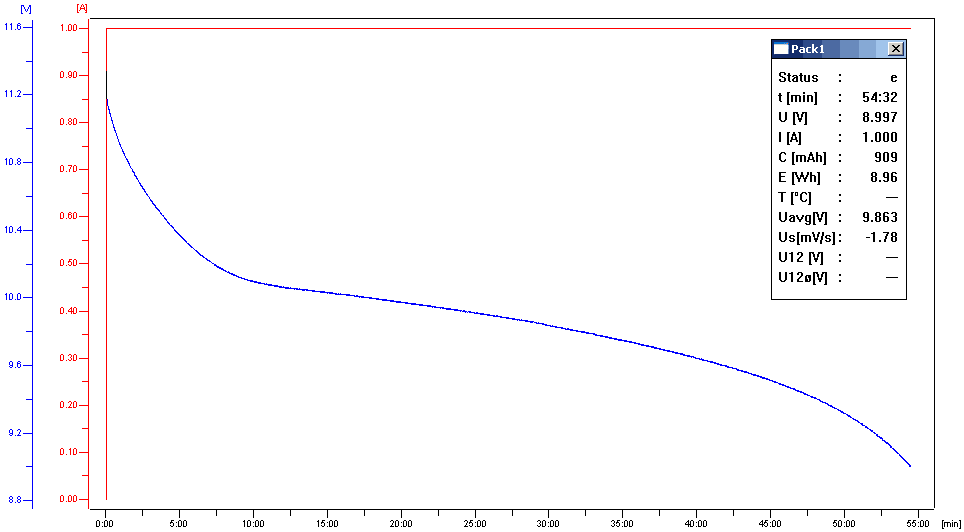

005 - The charge was 200mA for 12hr, over charging.. Discharge Result 909mAh

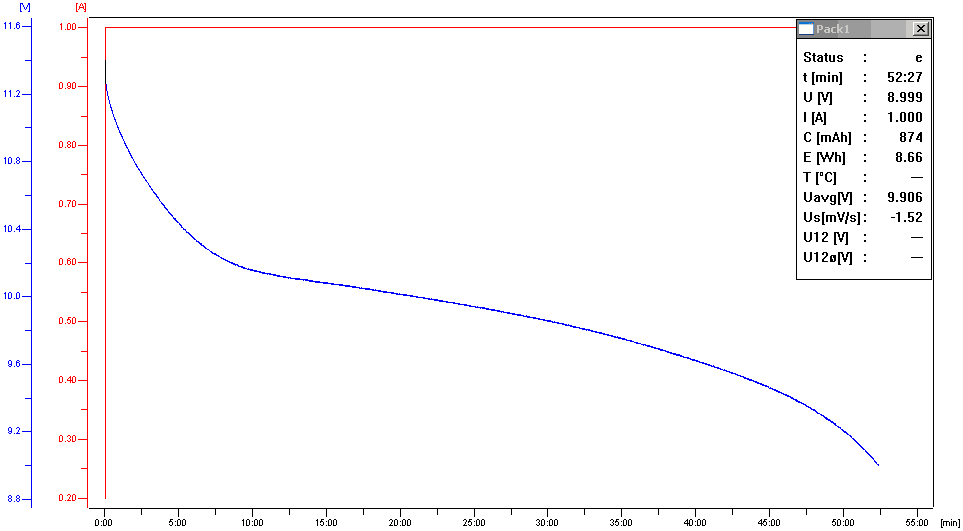

006 - The charge current was: 2A for 31:33 976mA Discharge Result 874mAh
Discharge was started directly after charge was complete, with HOT pack.

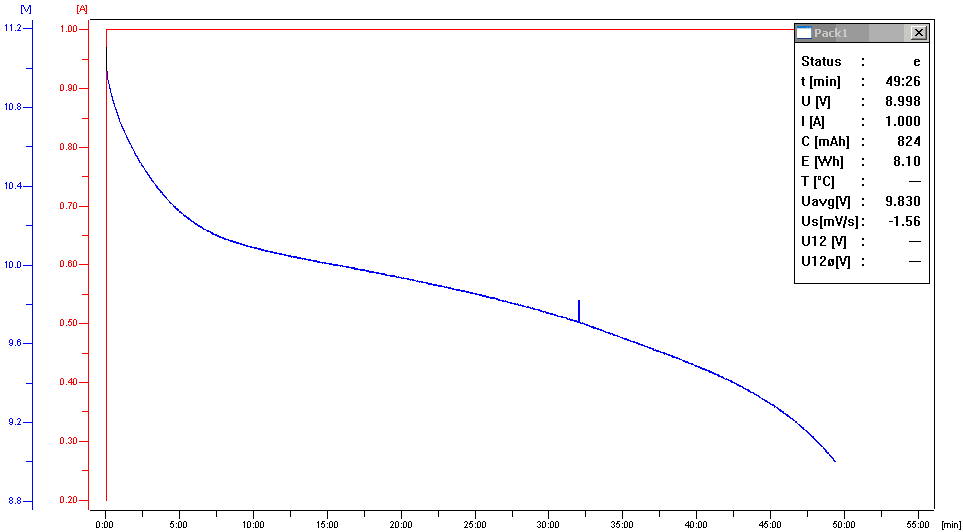

007 - The charge current was 4A Discharge Result 824mAh
Discharge was started directly after charge was complete, with BURNING HOT pack.

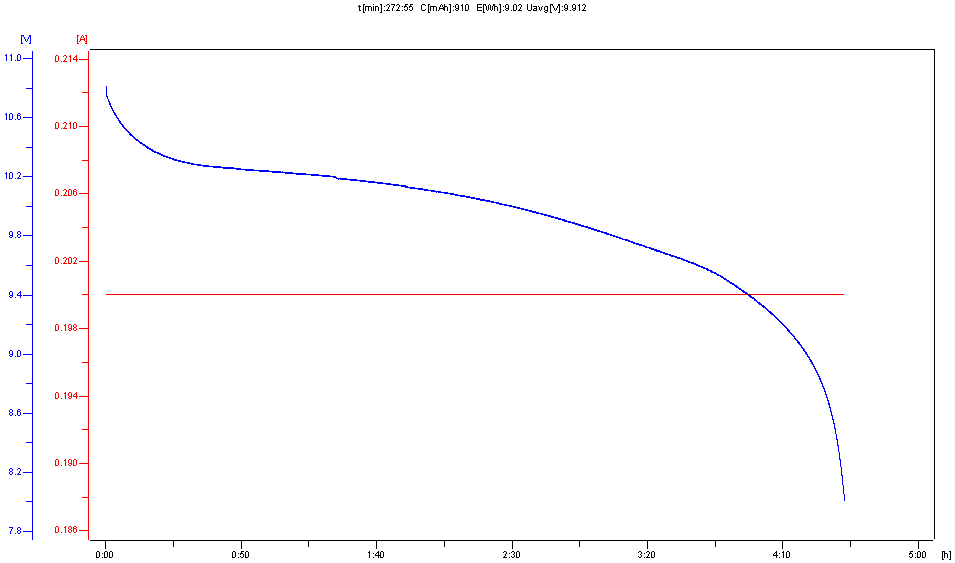

008 - The charge current was 0.5A Discharge 0.2C Result 910mAh

By the way : I have also measured KAN1100 and found them the be EXACTLY the same as KAN1050
they should call them KAN900 or KAN850 then the name would fit much better
