20m RIG Test 4 Setup

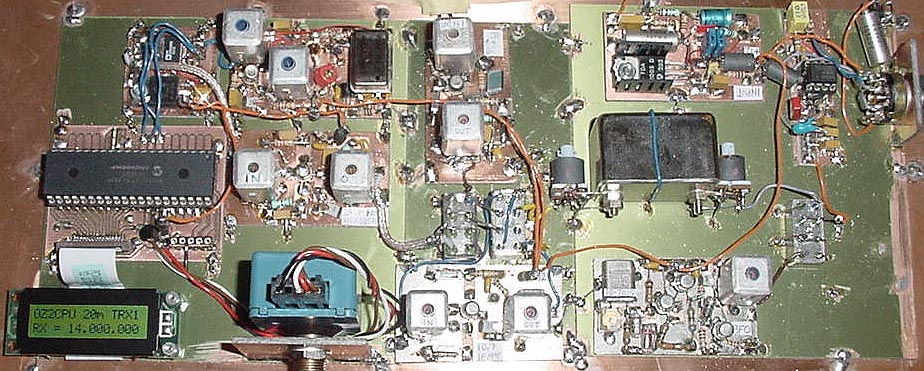

Just added the Display and the first relay to prepare for transmitting.

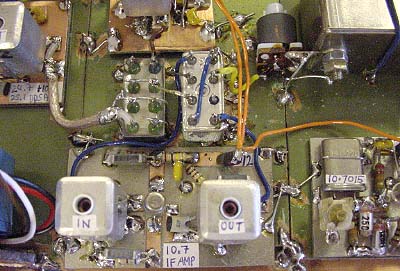

A close up of the IF amplifier pass-by switch during transmit.
A metal sealed HF relay is used, but I'm sure most small low cost relays will do just fine
